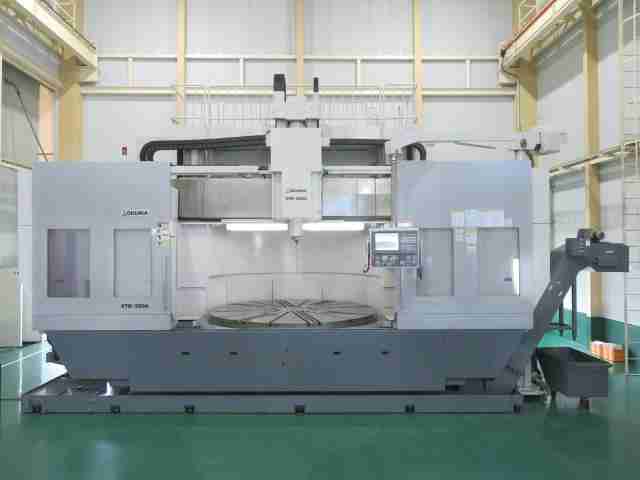

Control:OSP-P200L(Interactive) Table:φ3200(8-Jaw single action chuck),160rpm, C-Axis:0.001° Max.Swing:φ3,500、 Work loading: 20,000kg Max.machining dia.:φ3,500 xMax. work length(height): 2000(standard1600+400) Milling spindle:3,000rpm, BT50, ATC24 (Turning:11, Milling:12, Protect holder:1) Travels:XZ:2100×1250 Cross rail travel: 900 ・High column spec.(column up 400mm) ・Milling-spindle Through-spindle coolant(1.5Mpa) ・In-machine workpiece measurement(Renishaw RMP60) ・Absolute scale(X, Z-Axis) ・Automatic tool pre-setter ・Chip-conveyor ・Turning holderx7unit+Protection holderx1unit
Address: Tokyo, Japan
Tel: +81 90-9963-3296
Email: info@japanesemachines.com
Web: www.japanesemachines.com
